WIPER AND WASHER SWITCH INSPECTION

WIPER AND WASHER SWITCH INSPECTION

id091900802800

1.  Disconnect the negative battery terminal.

(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the wiper and washer switch.

(See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(E)].)

3.  Verify that the continuity between the wiper and washer switch terminals is as indicated in the table.

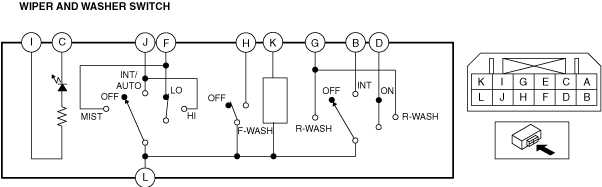

ac30zw00002588
am3zzw00027447
am3zzw00027448
am3zzw00027449

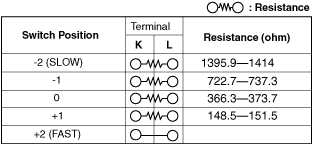

ac30zw00005339

•  If the continuity is not as indicated in the table, replace the wiper and washer switch.
(See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [(E)].)
