REAR SPOILER REMOVAL

id091600802500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the side spoiler. (See SIDE SPOILER REMOVAL/INSTALLATION.)

3.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

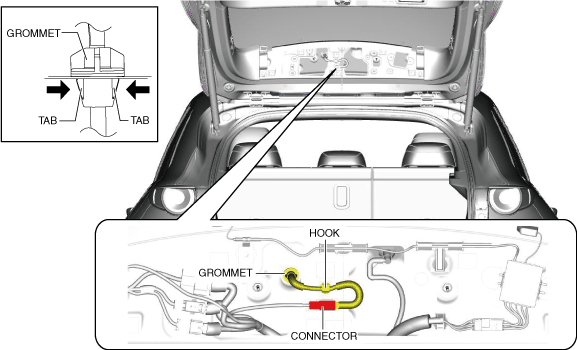

4.  Disconnect the connector and remove the wiring harness from the hook.

ac30zw00001463

5.  Disengage the grommet tabs from the liftgate.

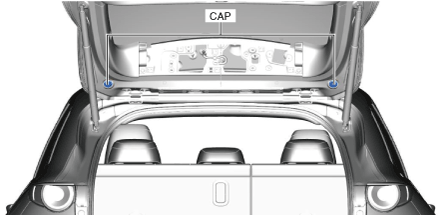

6.  Remove the caps.

ac30zw00001464

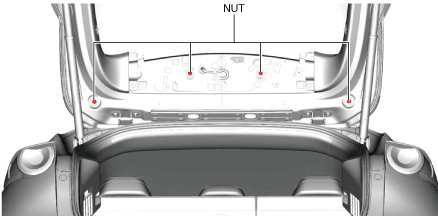

7.  Remove the nuts.

ac30zw00001465

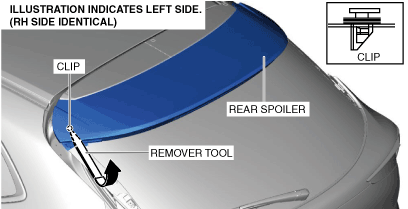

8.  Insert a remover tool in the position shown in the figure.

ac30zw00001466

9.  Move the remover tool in the direction of the arrow shown in the figure and disengage the rear spoiler clip from the liftgate.

Caution

•  Remove the rear spoiler using two people. Otherwise, it may fall off and be damaged.

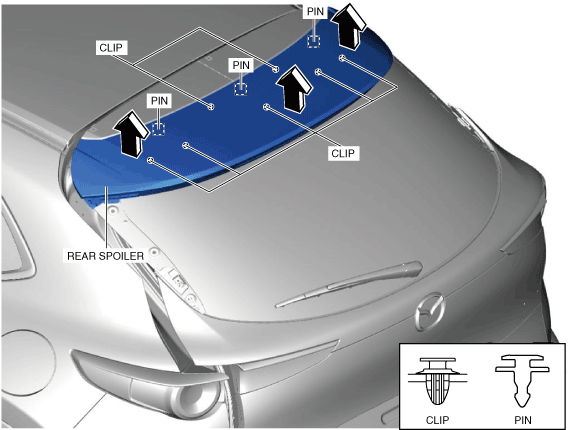

10.  Pull the rear spoiler in the direction of the arrows and remove it while detaching the pins and clips.

ac30zw00001467

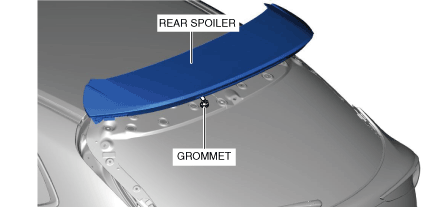

11.  Remove the rear spoiler while pulling out the wiring harness.

ac30zw00001468

Note

•  When replacing the rear spoiler, remove the high-mount brake light. (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)
