KEYLESS RECEIVER REMOVAL/INSTALLATION

id091400514300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)  Trunk side upper trim (LH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(3)  C-pillar trim (LH) (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

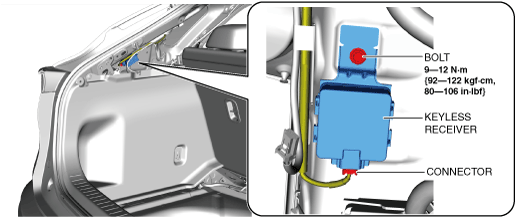

ac30zw00000862

4.  Remove the bolt.

5.  Remove the keyless receiver.

6.  Install in the reverse order of removal.
