PUSH BUTTON START INSPECTION

PUSH BUTTON START INSPECTION

id091400006900


Continuity Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the Push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION.)

3.  Verify that the continuity between the push button start terminals is as indicated in the table.

am3uuw00009904
am3zzw00027729

•  If not as indicated in the table, replace the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION.)


LED Illumination Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the Push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION.)

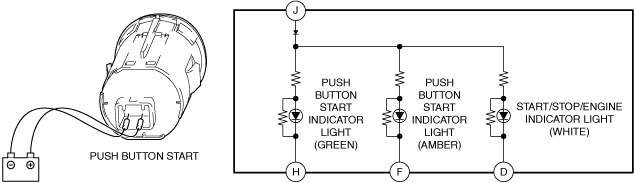

3.  Apply battery positive voltage and connect the ground to the push button start terminals and verify that the LED illuminates as indicated in the table.

am2zzw00008322
am2zzw00008323

•  If the LED does not illuminate as indicated in the table, replace the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION.)
