REAR BUMPER STAY REMOVAL/INSTALLATION

REAR BUMPER STAY REMOVAL/INSTALLATION


 id091000991100

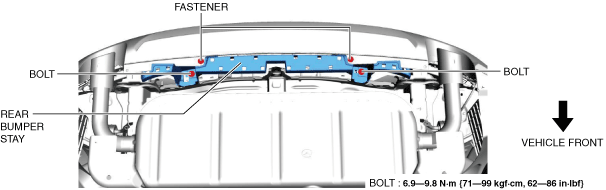

1.  Remove the fasteners.

ac30zw00001576

2.  Remove the bolts.

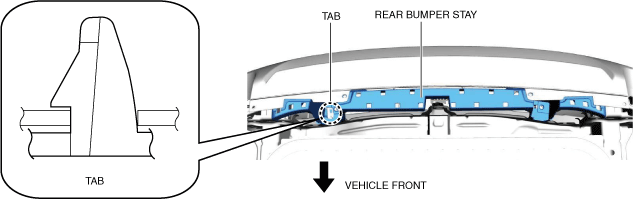

3.  Detach the tab shown in the figure.

ac30zw00001577

4.  Remove the rear bumper stay.

5.  Install in the reverse order of removal.
