HOOD ADJUSTMENT

id091000801400

Gap Adjustment

1. Verify that the gap between the hood and the body is within the specification.

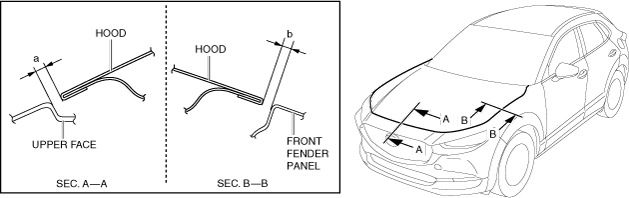

ac30zw00001093

Standard clearance

a: 2.6—5.6 mm {0.11—0.22 in}

b: 2.5—4.0 mm {0.10—0.15 in}

• If the measured value exceeds the standard clearance, adjust the hood using the following procedure.

2. Loosen the bolts and adjust the hood.

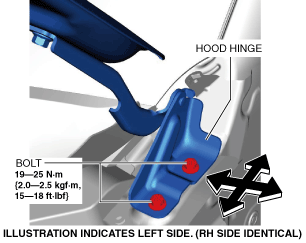

ac30zw00001094

3. Tighten the bolts.

Height Difference Adjustment

1. Verify that the height difference between the hood and the body is within the specification.

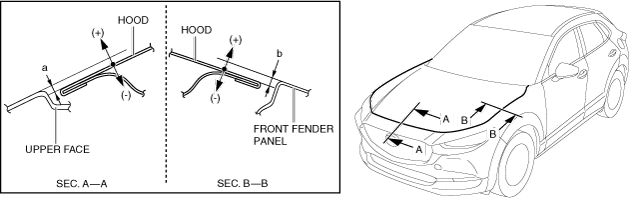

ac30zw00001095

Standard clearance

a: –2.0—2.0 mm {–0.078—0.078 in}

b: –1.0—1.0 mm {–0.039—0.039 in}

• If the measured value exceeds the standard clearance, adjust the hood using the following procedure.

2. Turn the stop rubbers to adjust the height of the hood.

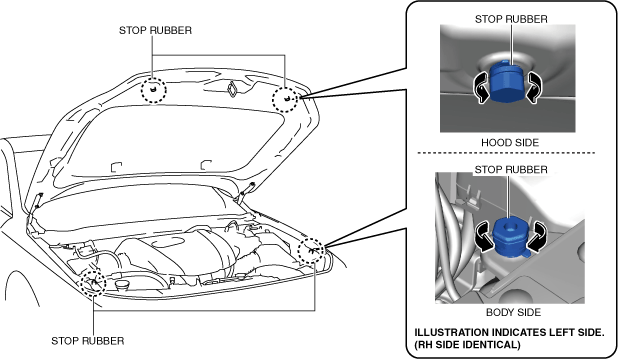

ac30zw00001096
