DTC U3000:49 [BODY CONTROL MODULE (BCM)]

id0902r7094200

Warning

• If this DTC is detected, the system will enter the fail-safe function to ensure safety. If a specified period of time has elapsed or the vehicle has been driven for a specified period of time or more while in fail-safe mode, the ignition will remain stuck in off and the engine cannot be started. Therefore, perform the malfunction diagnosis while the engine can be started. In addition, after having performed the malfunction diagnosis, verify that this DTC is not detected. If the DTC is not detected, the system returns to normal from the fail-safe function.

Note

• If the vehicle is in the following condition while in fail-safe mode, “Keyless Entry System Malfunction. Have the Vehicle Inspected” is displayed in the Multi Information Display (MID)/the KEY warning light (red) illuminates and the push button start indicator light (amber) flashes.

― Switch the ignition to ACC or ON (engine off or on).

― Depress the brake pedal (ATX)/clutch pedal (MTX).

• In addition to the normal engine starting operation while cranking the engine in fail-safe mode, it is necessary to press the push button start.

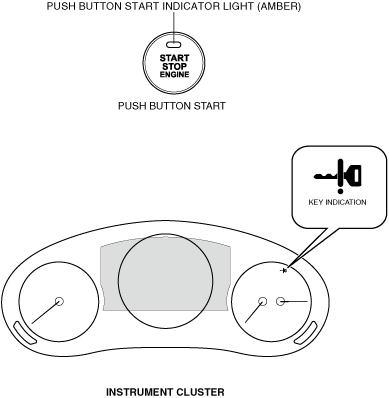

ac30zw00002599

Outline

System malfunction location

Body control module (BCM) internal malfunction

Detection condition

•  The body control module (BCM) detects the internal malfunction.

Fail-safe

•  The system will enter the fail-safe function to ensure safety. If a specified period of time has elapsed or the vehicle has been driven for a specified period of time or more while in fail-safe mode, the ignition will remain stuck in off and the engine cannot be started.

Possible cause

•  Body control module (BCM) malfunction

System wiring diagram

Not applicable

Connector diagram

Not applicable

System malfunction location	Body control module (BCM) internal malfunction
Detection condition	• The body control module (BCM) detects the internal malfunction.
Fail-safe	• The system will enter the fail-safe function to ensure safety. If a specified period of time has elapsed or the vehicle has been driven for a specified period of time or more while in fail-safe mode, the ignition will remain stuck in off and the engine cannot be started.
Possible cause	• Body control module (BCM) malfunction
System wiring diagram	Not applicable
Connector diagram	Not applicable

Diagnostic Procedure

Step

Inspection

Results

Action

1

INSPECT BODY CONTROL MODULE (BCM) FOR MALFUNCTION

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the body control module (BCM).
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, replace the body control module (BCM) and perform the repair completion verification.

(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)

No

Go to the next step.

Repair completion verification

VERIFY IF OTHER DTC IS DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	INSPECT BODY CONTROL MODULE (BCM) FOR MALFUNCTION • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the body control module (BCM). (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, replace the body control module (BCM) and perform the repair completion verification. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION [(E)].)
1		No	Go to the next step.
Repair completion verification	VERIFY IF OTHER DTC IS DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification		No	DTC troubleshooting completed.
