MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8]

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 1.8]

 id0140s1801000

Note
•  The MAP sensor is integrated with the boost air temperature sensor. When replacing the MAP sensor or the boost air temperature sensor, replace the MAP sensor/boost air temperature sensor.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the bolts.

am3zzw00031161

3.  Remove the bracket.

4.  Disconnect the MAP sensor/boost air temperature sensor connector.

am3zzw00031162

5.  Remove the screw.

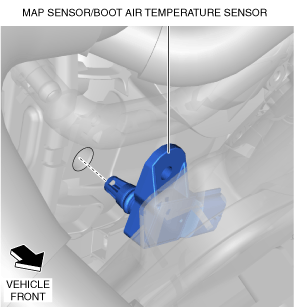

6.  Remove the MAP sensor/boost air temperature sensor.

am3zzw00031163

7.  Install in the reverse order of removal.
